Binder 770 Plug

$14.00

This Binder 770 connector is our standard for tether connections above the water. Some assembly with soldering required for installation.

Clear

SKU: MISC-ELEC-BINDER-770-PLUG-R1-VP Category:
HS Code: 8536.49.0050

Product Description

The Binder 770 connector is our standard connector for tether connections above the water. The connectors have 8 pins and are IP67 splashproof when mated, reasonably priced, and compact. The Binder 770 plug is pre-installed on all Fathom tethers since August 2018, but this connector can be used to retrofit older tethers.

The connector has a current rating of 2A per pin, is rated for 175V (1750V impulse), can handle >5000 mating cycles, and has gold plated pins.

Please note that the connector requires moderate soldering skills and we highly recommend checking out our tutorial for tips on soldering it successfully.

Contents

  • 1 x Binder 770 Plug (2.5-4 mm part no: 99-0771-000-08; 6-8 mm part no: 99-0771-002-08)

Specifications

ParameterValue
TerminationSolder
Wire gauge0.25 mm224 - 28 AWG
Ingress protectionIP67
Mechanical operation> 5000 mating cycles
Temperature range-25°C - 85°C-13°F - 185°F
Rated voltage175 V
Rated impulse voltage1750 V
Rated current2 A
Contact materialCuZn
Body materialPA (UL 94 HB)

2D Drawings

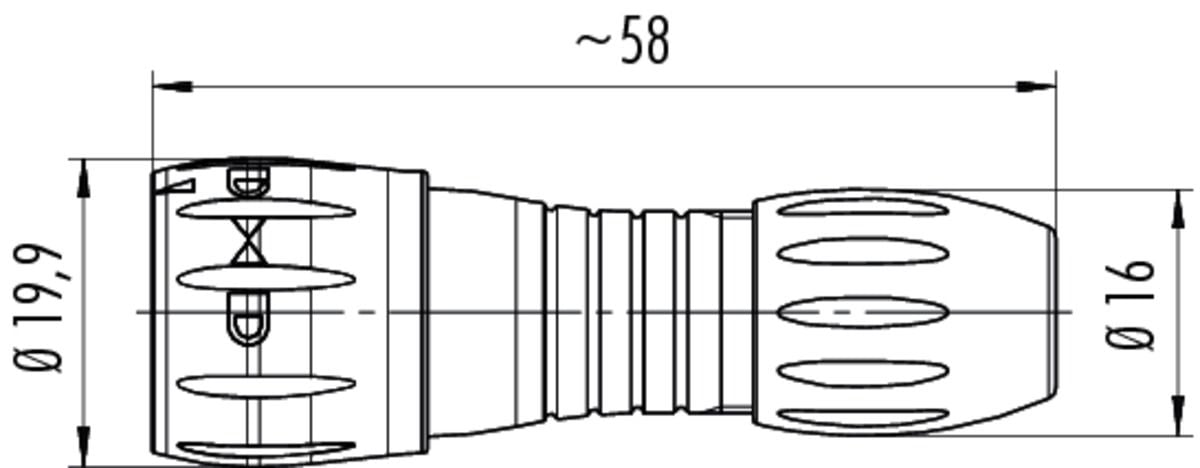

Binder 770 Plug: 2.5 – 4 mm

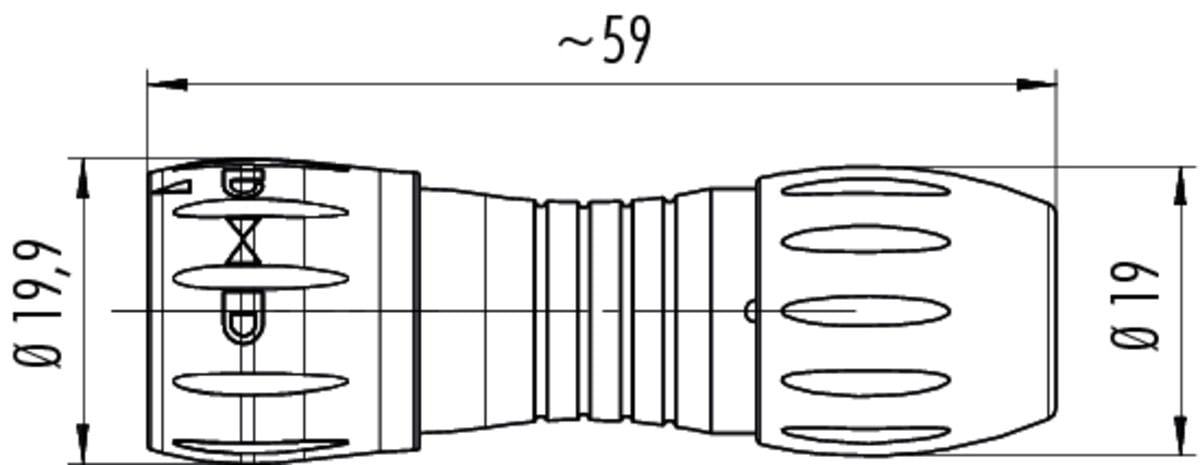

Binder 770 Plug: 6 – 8 mm

3D Models

MISC-ELEC-BINDER-770-PLUG-S-R1.STP (2.5-4 mm)

MISC-ELEC-BINDER-770-PLUG-L-R1.STP (6-8 mm)

Outside Resources

Manufacturer Product Page (2.5-4 mm)

Manufacturer Product Page (6-8 mm)

Revision History

7 August 2018

  • R1 – Initial release

Standard Pinout

Pin NumberColor
1Blue
2White / Blue
3Orange
4White / Orange
5Green
6White / Green
7Brown
8White / Brown
Note: The first two pins are the only ones used for the Fathom Slim Tether option.

Tutorials

Binder Plug Soldering Tutorial
