Payload Skid

$264.00

The Payload Skid is a modular frame for the BlueROV2 with mounting points for additional watertight enclosures, lights, and ballast weights. Use it to carry large payloads and expand functionality!

In stock

SKU: BROV2-PAYLOAD-SKID-R1-RP
HS Code: 3920.61.00

Product Description

The Payload Skid is a modular frame for the BlueROV2 with mounting points for additional watertight enclosures and lights. Using the Payload Skid, you can add additional large instruments and other equipment to your BlueROV2.

Check out the product video for the Payload Skid:

Fitting snugly to the bottom of the ROV, the Payload Skid can host up to an additional two Lumen subsea lights, twelve Ballast Weights, and two 4″ Watertight Enclosures or three 3″ Watertight Enclosures.

Contents

  • 2 x Payload Skid Side Panel (HDPE)
  • 1 x Payload Skid Bottom Panel (HDPE)
  • 2 x Standoff
  • 4 x Payload Skid Mounting Clip
  • 4 x M4x16 Screws (316 Stainless Steel)
  • 12 x M5x16 Screws (316 Stainless Steel)

Specifications

ParameterValue
Length475 mm18 in
Width 338 mm13.3 in
Height197mm7.7in
Weight (in air)1200g2.65lbs

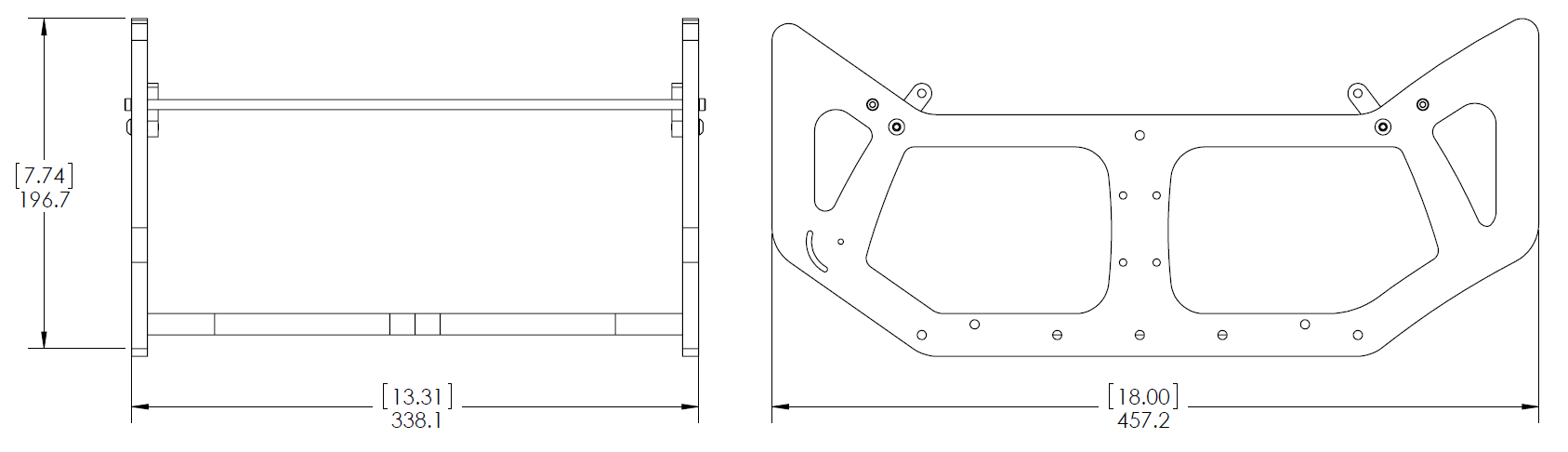

2D Drawings

3D Models

BROV-PAYLOAD-SKID-R1 (.zip)

Revision History

20 October 2016

  • Initial Release – R1

Tutorials

Assembly and Installation Instructions
