Electronics Tray (4″ Series)

From: $49.00

The Electronics Tray provides a convenient way to mount your electronics in a Watertight Enclosure for ROV/AUV (4″ Series) . Compatible with the Camera Tilt System and used on the BlueROV2

New and current orders will ship by May 23.

SKU: ETRAY4-R1-RP
HS Code: 4202.12.29.10

Product Description

Product Description

The Electronics Tray provides a convenient way to mount electronics and equipment in a 4″ Series Watertight Enclosure. The Electronics Tray consists of three flat ABS plastic parts and several anodized aluminum spacers to hold it together. It rigidly mounts to the enclosure’s Flange Seal and stay fixed even when the tube is removed from the enclosure. The front panel has mounting holes for the Camera Tilt System for easy use with any camera and dome. The Electronics Tray also includes slots for routing wires from one side of the board to the other and for cable ties to keep your wiring organized. The tray optionally comes with four terminal blocks that make it easy to connect power and motor wires. These are used on the BlueROV2 and might be useful for your project as well!

Features

Mounting locations for:

Contents (Tray Only)

  • 1 x Tray (ABS)
  • 1 x Front Bulkhead (ABS)
  • 1 x Rear Bulkhead (ABS)
  • 4 x Short Hex Standoffs
  • 2 x Long Hex Standoff
  • 4 x Standoff Screws
  • 4 x Computer Mounting Screws
  • 4 x Computer Mounting Standoffs
  • 10 x Small Zip Ties (Cable Routing)
  • 3 x ESC Zip Ties

Optional Contents (Terminal Blocks and Hardware)

  • 2 x 8-Circuit Barrier Block
  • 14 x Barrier Block Jumpers
  • 2 x Barrier Block Mounting Nuts
  • 2 x Barrier Block Mounting Screws
  • 2 x 9-Circuit Eurostyle Terminal Strip
  • 8 x Eurostyle Terminal Strip Mounting Screws
  • 4 x Eurostyle Terminal Strip Mounting Standoffs

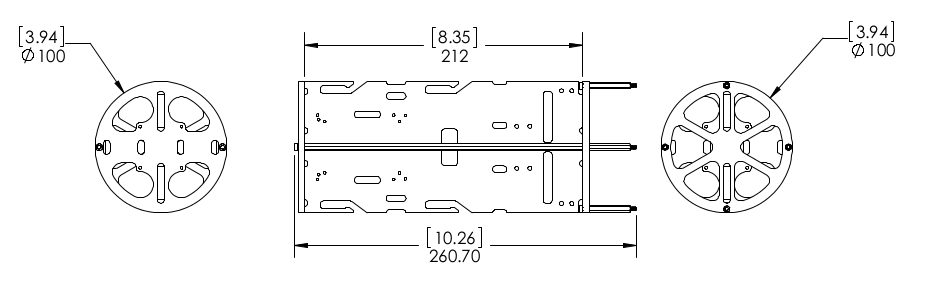

2D Drawings

3D Models

ETRAY-ASM-TRAY-R1 (.zip)

ETRAY-ASM-TRAY-WITH-ELECTRONICS-R1 (.zip)

Revision History

7 October 2016

  • R1 – Initial Release

Mounting Diagram

Guides

4″ Series Electronics Tray Assembly

Learn how to assemble the 4" Electronics Tray for your own custom projects!
